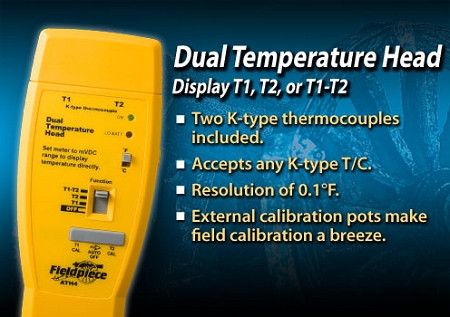

The Fieldpiece Dual-Temperature Accessory, model ATH4, measures two temperatures simultaneously using the included k-type, wrap tab beaded thermocouples. The technology inside the ATH4 provides superior temperature compensation in rapidly changing environments commonly found while performing field service. Use the ATH4 to find Delta T and just about any temperature split you want to measure. Displays T1, T2 and T1-T2 on your Fieldpiece meter, handle or data logger. It is included with the HVAC Guide® System Analyzer to get target superheat and for the Target Evaporator Exit Temperature test. Fieldpiece offers a wide variety of k-type thermocouples for various HVAC specific applications. Use pipe clamp T/Cs with the ATH4 to check for blocked filters. Use wet and dry bulb thermocouples to find target superheat.
* To calculate system accuracy from components, add up the accuracy specifications for the meter, the thermocouples, and the converter. For example, at 100ºF(38°C), add the accuracies for a DMM(±1ºF/ ±0.5°C), a thermocouple (±4ºF/ ±2°C), and the converter (±4ºF/±2°C). The system accuracy for these individually calibrated components is ±9ºF(±4.5°C). If the actual temperature was 100ºF(38°C), the meter could read as high as 109 (42.5) and as low as 91 (33.5). By contrast, after a simple "ice bucket" system calibration, the meter would read between 101.0 (38.5) and 99.0 (37.5).
