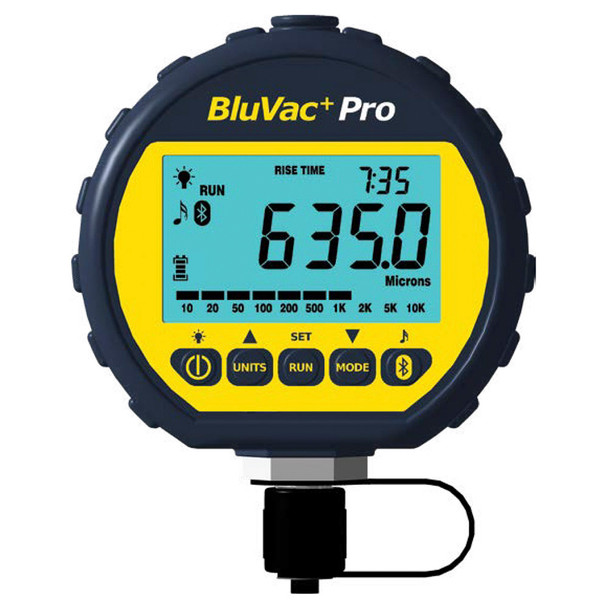

Accutools BluVac+ Professional Digital Micron Gauge with Coupler and Bluetooth

Works directly with the BluVac app! See the "Software / App" tab for more info.

BluVac Professional Plus is designed to not only give you fast and accurate readings, but it will also be able to provide those readings to you via Bluetooth. Exciting yet the BluVac Pro Plus is able to work with the BluVac app for a complete report.

The AccuTools BluVac Professional Digital Vacuum Gauge is the most accurate and precise vacuum instrument available today with patented technology that cannot be found anywhere else.

With the BluVac Pro, you can accurately measure vacuum pressure in Microns, Pascals, Millibar, Millitorr, mmHg, PSI, and inHg with resolution down to 0.1 micron. Ideal for the HVAC/R, Industrial, and Scientific professionals, the BluVac Pro is small, lightweight, rugged and easy to use. It is programmable, allowing for unattended evacuation and rise-time testing of HVAC/R systems of all sizes.

Key Features of the Pro model over other models: PISG display, Saturation Temperature display, Vacuum Rise Time Analyzer, minimum pass time analysis (15 min.), Evacuation Progress indicator, and Vacuum leak indicator in Microns per minute

Features:

Operates stand-alone or with Android and iOS apps
Operates with the iManifold / iConnect app
Large, high-visibility back-lit LCD display
Measures Vacuum in Microns, Pascals, Millibar, Millitorr, mmHg, PSI, and inHg
0 to 25,000 Micron Range with 0.1 Micron Resolution less than 10,000 Microns
"Analog" Vacuum Level Bar Graph
Evacuation Progress Indicator shows Vacuum between 25,000 Microns and ATM
Vacuum Leak Rate, Ambient Temperature, and Saturation Temperature Indicator
Automatic Oil Sensor
Measures Ambient and Saturation Temperature in Fahrenheit and Celsius to 0.1
Built-in memory retains all previous settings
Rugged, Compact Design with Protective Silicone Rubber Boot
Long Battery Life
Programmable Automatic Evacuation and Rise-Time Testing
Calibration Self Test -- Can be field calibrated with no special equipment
Ideal for HVAC/R Service, Industrial Use, and Scientific Measurement

BluVac+ Pro App Features

View vacuum on digital gauge or graph
Bar graph vacuum indicator
Automatic notifications of evacuation process
Leak check feature
Record evacuation process
Export as graphical PDF
Export as comma-delimited CSV

Specs

Range	0 - 25,000 Microns (3333.1 Pa, 33.331 mBar, 25,000 mTorr, 25.000 mmHg)
Vacuum Accuracy	5% of Reading +/- 5 Microns
Vacuum Resolution	0.1 Micron (@ 0.0 to 9,999.9 Microns) 1 Micron (@ 10,000 to 25,000 Microns)
Programming	Evacuation Timer
Maximum Overpressure	1000 PSI
Temperature Accuracy	0.2°F (0.1°C)
Temperature Resolution	0.1°
Warm-up Time	Instant
Response Time	Instant
Power	One 9V Alkaline Battery
Battery Life	Up to 300 Hours
Operating Temperature	10°F - 122°F (-12°C - 50°C)
Weight	6 oz. (170g) including Battery and Swivel Hook
Dimensions	3.5" x 3" x 1.25" (9cm x 7.5cm x 3cm)
Vacuum Port Fitting	1/4" Male Flare - Nickel Plated for Durability with Dust Cap
U.S. Patent Nos.	8,504,313 and 8,768,633
