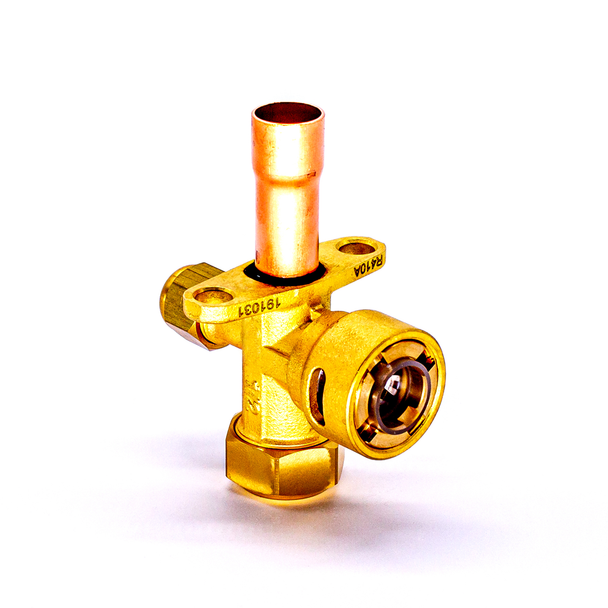

RectorSeal 87044 PRO-Fit 1/2" Quick Connect Service Valve

RectorSeal 87044 PRO-Fit 1/2" Quick Connect Service Valve

Push-to-Connect Refrigerant Fittings

PRO-Fit Quick Connect push-to-connect refrigerant fittings quickly connect copper and aluminum linesets for mini-split and unitary HVAC units. With no flaring or brazing involved, refrigerant lines can be securely and safely connected by PRO-Fit Quick Connect in various environments. The unique, leak-proof double O-rings sealing design creates a permanent high pressure gas seal that prevents connection leaks caused by galling, vibration, pulsation and extreme temperature changes.

Applications:

• Flame-free fittings for connecting refrigerant lines
• For HVAC/R up to 870 psi (60 bar)
• Prevent refrigerant lineset leaks

Recommended for:

• Residential use
• Coated aluminum linesets
• Mini-split HVAC units
• Unitary indoor coils

Characteristics / Features

• Quick and easy push-in
• Flame-free: no flaring or brazing needed
• Single-use with quick-release removal
• Robust brass body, durable & reliable
• Leak-proof double O-rings sealing
• Complete system with all sizes and configurations
• High tensile strength
• Vibration and impact resistant
• UV resistant
• Corrosion resistant
• Sight window for connection verification
• Compatible with major refrigerants, including R410A and R22

Instructions to Connect Fitting:

1. Cut the Tube.
2. De-burr.
3. Use prep tool (sold separately) to determine depth.
4. Mark insertion depth.
5. Push into fitting.
6. Double check through window on fitting.

Instructions to Connect Fitting:

The refrigeration system must be isolated, or pumped down before disconnecting. Press the release with disconnect clip to remove tubing. Make sure that the fitting and tube are free from defects. The fitting and tubing should be free of damage, foreign object and marks on the outside diameter. Do not insert fingers in the grip ring inside the fitting.
