Description

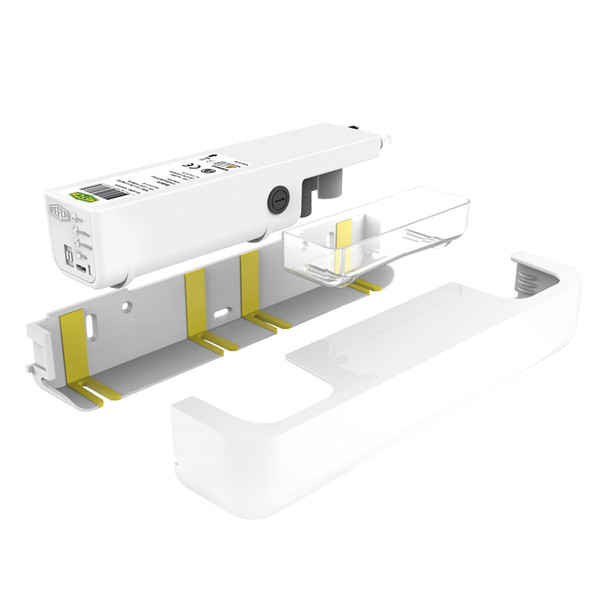

Refco Gobi 2 Condensate Pump 3004145
The GOBI II condensate pump for direct mounting under the air conditioner is designed for systems from 6 000 BTU/h (1.75kW) up to 120 000 BTU/h (35kW). The digital water sensor, the universal voltage range and the individually configurable flow rate are features that contribute to making the Gobi II the most powerful and quietest condensate pump for air conditioning systems on the market today. The variable range of applications allows the trade as well as the installer to cover almost all needs with just one pump.
Features
- Universal use due to wide range of applications
- Warranty period only starts with commissioning (readable via USB)
- 11 gallon pumping capacity per hour
- 65 ft delivery head
- <19 dB noise level
- No float problems thanks to digital sensor
- Demand-oriented control of the pumping capacity
- Spare parts available
Specs
| Maximum flow rate: | 11 GPH (42 l/h.) |
| Maximum suction: | 10 ft. (3 m) self priming |
| Maximum head: | 65.60 ft. (20 m) |
| Sound: | 20dBA at 3 ft. (1 m) 19dBA at 1 EN ISO 3744:2010 |
| Wireless access: | Remote wireless access with smartphone (optional feature) |
| Voltage: | 100 ~ 240 VAC 50/60 Hz auto sensing universal power input |
| Power: | 8 watts during maximum operation at 110V |
| Alarm relay: | 10 Amps NO/NC contacts with integratedd replaceable HRC 10A fuse 5 × 20 mm |
| Weight: | 1.3 Lbs. (600g) |
| Discharge star tube: | 1/4“ I.D. (6.25 mm) × 3.3 ft. (1 m) |
| Protection: | Class II double insulation, Fully potted, IP-44 |
| Operation temp: | Ambient 37.5°F to 104°F (3°C to 40°C) Water 41°F to 77°F (5°C to 25°C) |
| Compliance: | Conforms to UL:778 and certfied to CSA C22.2#68 |
Includes
- (1) Refco Gobi 2 Condensate Pump
- (1) Star tube and Stop-Siphon device
- (1) Alarm cable
- (1) Power cable
- (3) Cable ties
- (3) Screws and anchors
