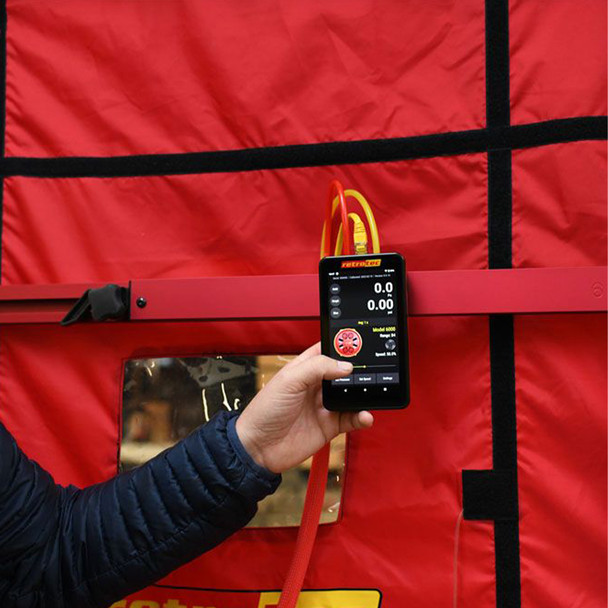

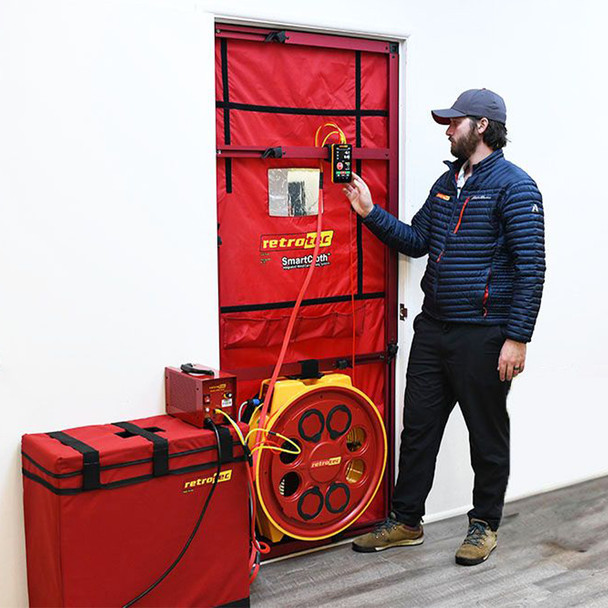

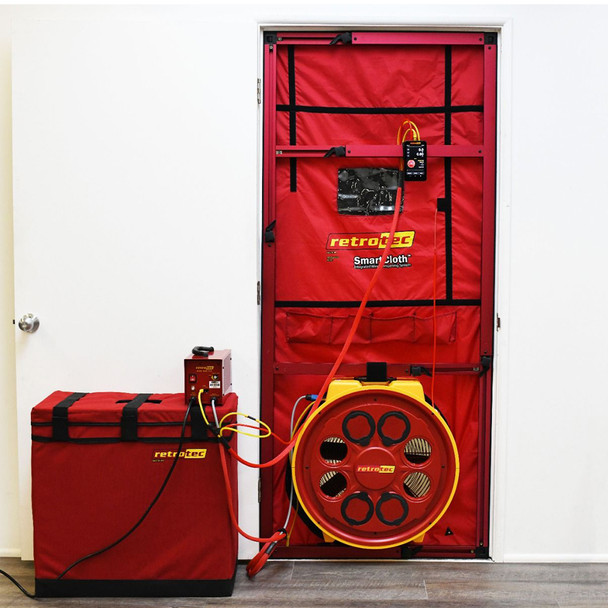

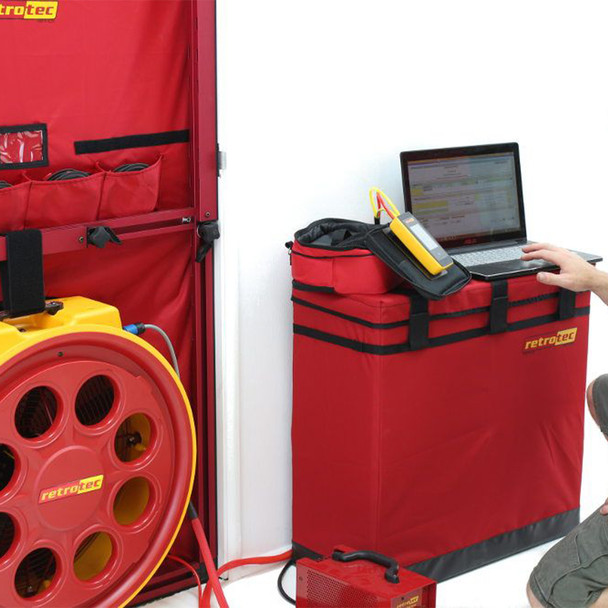

Retrotec US6100 Blower Door System with DM32X Gauge, Model 6000 Fan, Smart Cloth Panel, and Frame
All the features of a Model 5100 but double the power.
High Powered Blower Door System
This system will test a wide range of enclosures, from super leaky to super tight. This high output fan includes 6 standard + 3 optional low flow ranges to provide accurate results over the widest range of enclosure volumes. All Retrotec fans are made with extremely durable space-age hard plastic, which makes them both lightweight and tough.
Who uses it?
- Energy Auditors
- HVAC Contractors
- Building Contractors & Remodelers
- Home Inspectors
Why Buy This Model?
- The added power increases the range of test pressures that can be created without changing ranges mid test.
- The stability of control reduces the fan's response to wind and holds the test pressure more constant, making tests faster and more accurate.
- New guide fins over the flow sensors decrease sensitivity to wind by 75%.
- System accessory and fan cases are included.
Retrotec Advantages
- Easy to learn & use. Perform a test in minutes.
- Color coded. Match up tubing colors to gauge colors. It's that simple.
- Full Package. Everything you need to start testing imediately (including our powerful digital gauge)
- Read results in any units. Get CFM, sq ft or ACH50 right on the gauge
- rCloud compatible. Auto test, report, and share with ease.
- Quick setup & teardown. Snap together, snap apart frame.
- 10-year fan shell warranty. They're built to last.
5000/6000 series blower doors DO NOT work with the DM-2 digital gauge.
Specs
| Specifications below are for each individual fan. | ||||
| Fan Model #: | 6000 | |||
| Flow Into: | CFM | litres/sec | m3/h | |
| Maximum Flow, per fan | Free Air | 8,100 | 3,823 | 13,762 |
| 50 Pa | 7,700 | 3,634 | 13,082 | |
| 75 Pa | 7,400 | 3,492 | 12,573 | |
| Minimum Flow: -on optional Range B29 |
8.1 | 2 | 8 | |
| Dimensions: | 26" x 25.5" x 9.5" (66 x 65 x 24 cm) | |||
| Weight: | 36.3 lb (16.5 kg) or 38 lb (17.2 kg) with Ring A & Plated B8 installed | |||
| Flow Accuracy: | +/-5% | |||
| Power: | 120V@60hz/22.0A or 240V@50hz/10.9A or 110V@50Hz/22.0A | |||
| Recommended Fan Calibration Interval: | 5 years | |||
| Digital Gauge Model: | DM32X | |||
| Door Panel and Frame Model: | AL250R | |||
| Type of Panel: | SmartCloth Panel & Frame - Single 1000/3000/5000/6000 Fan | |||
| Type of Frame: | Regular Sized Red Anodized Frame | |||
| Width (min/max): | 29.5” - 45” (75 - 109 cm) | |||
| Height (min/max): | 53” - 97” (135 - 246 cm) | |||
| Frame Thickness: | 1.75” (5.3 cm) | |||
| Weight (approx): | 16 lbs (7.3 kg) | |||
* The max flow of the fan will vary depending on the following factors:
voltage, frequency, barometric
pressure, back pressure, blade pitch, air temperature, bearing tightness, inlet air turbulence
* 5000/6000 series blower doors DO NOT work with the DM-2 digital gauge
Includes
1 x DM32X Digital Gauge Package
- (1) DM32X Digital Gauge
- (1) USB Cable, 6' (1.8 m)
- (1) Cat5 Cable, 7' (2 m) Blue
- (1) DM32X USB Charging Module
- (1) Gauge Case
- (1) Gauge Calibration Verification Report
1 x 6000 Series Fan Set
- (1) 6000 Series Calibrated Fan
- (1) High Power Drive for 6000 Series Fan (120V/60Hz, 240V/50Hz, or 110V/50Hz)
- (1) Range Ring A for 5000/6000 Series Fan
- (1) B8 Plate for 5000/6000 Series Fan
- (8) 4" Blank Plugs
- (1) Power Cord
- (2) Fan Cover
- (1) System Calibration Verification Report
1 x SmartCloth & Frame (new) - Single Fan
- (1) Aluminum Frame, Red Anodized
- (1) SmartCloth for 1000/2000/3000/5000/6000 Series Fan, Regular Height
- (1) Fan Crossbar Strap for Aluminum Frame
- (1) Case for Aluminum Frame
- 1 x Fan Case
- 1 x Blower Door Tubing Kit
- 1 x Umbilical for 1000/5000/6000 Series Fan, 7 ft (2 m)
- 1 x FanTestic Lite Blower Door Testing Software
Resources
Retrotec Blower Door Manual for 300, 5000, 6000 Series
Software / App
Download the Retrotec rCloud App for your Android or iOS devices today!
The rCloud app runs the equipment over a WiFi connection or iDevice hotspot. It is used to run industry specified tests, and then saves the results of the tests locally on the device and to a backend database in the cloud via Azure. The tests are not accessible for editing by the user once they are saved (local databases are encrypted). The completed tests can be viewed immediately on the App and also on the rCloud website once they are uploaded to the backend database.
