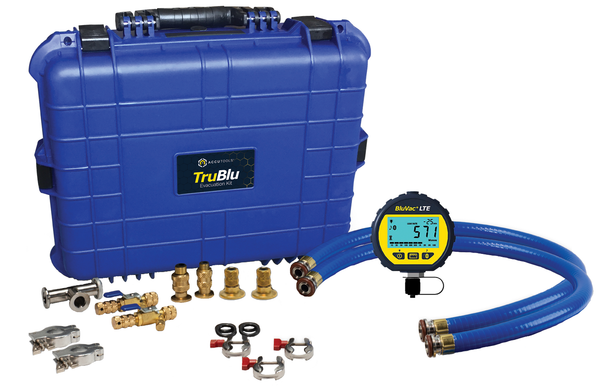

TruTech Tools TruBlu Advanced Kit with BluVac+ LTE
Exclusively at TruTech Tools
These hoses are freaky fast! TruBlu hose has a 3/4" internal diameter delivering 16 CFM of conductance speed at 1,000 microns. Evacuate 80x faster than 1/4" I.D. hoses and up to 6x faster than other “vacuum rated” hoses on the market today.
The TruBlu hose is extremely tough, ultra-smooth bored, yet the flexible wire reinforced PVC means it just won’t kink or collapse. TruBlu is resistant to abrasion and crushing and can be knocked back to round if accidently flattened. Additionally, the UV compounding has excellent weather resistance to provide years of reliable service.
The proprietary polymer blend has extremely low air permeation, water vapor adhesion, and outgassing making this hose ideal for vacuum service. In short TruBlu’s ultra-smooth large bore reduces flow loss and other losses providing the fastest evacuation of any hose on the market today.
Dedicated to Vacuum
TruBlu is engineered for vacuum. Most manufacturers of “evacuation hoses” use refrigerant transport hose and “recertify” it for use in vacuum applications. Refrigerant transfer hose is designed for refrigerant transfer. The materials though are simply not engineered for evacuation. Pick one up; it will be stiff, heavy, gassy and hydroscopic. Additionally, refrigerant transport hose (charging hoses) should never be used for refrigerant charging and evacuation. Oils and contaminants will line the hose absorbing moisture making a fast and deep vacuum almost unattainable. If you want dedicated, you want TruBlu.
A Better Evacuation System
A fast evacuation is a function of the components used in the process. TruBlu is the only system engineered for HVAC that uses industrial rated vacuum hose as well as vacuum rated KF fittings for quick hose configuration and vacuum tight connections.
One Hose Fits All
With their Patent Pending KF fitting designed specifically for HVAC applications, a TruBlu hose can be configured in the field for the pump and service valve connections from 1/4", 3/8", to even 1/2" fittings (even those with 90-degree adapters). Each fitting and valve has been carefully engineered from the core tools to the core depressors to assure vacuum tight connections ideal for HVAC applications. While all mechanical fittings leak, TruBlu fittings and hoses can achieve leaks rates so low that vacuums of 20 microns at the hose ends are easily possible even with the smallest vacuum pumps.
Using a 3 CFM pump or larger? You need TruBlu! Attaching a 1/4" hose to a vacuum pump can reduce the flow to as little as 0.7 CFM. No matter how large your pump is, (and remember size does matter!) it is limited or restricted by the hoses you attach to it. The deepest vacuum a pump can draw -14.7 PSI, so if you want more flow you need a bigger hose. If you want more flow you need TruBlu.
The AccuTools BluVac+ LTE Digital Vacuum Gauge is a state-of-the-art digital vacuum gauge utilizing patented technology to deliver the highest accuracy available. Operating for up to 300 hours on a single 9V alkaline battery, the BluVac+ LTE has Bluetooth Smart® wireless capability and sports a large 1/2" numeric display and a bright blue backlight. The BluVac+ LTE measures from 0—25,000 microns with 1 micron resolution.
The BluVac+ Micro can be operated stand-alone or in conjunction with an iOS or Android compatible app.
Possessing the same accuracy and reliability of the BluVac+ Pro gauge, the LTE is ideal for budget conscious technicians without sacrificing performance.
Innovative Oil Sensor and Self-Diagnostics ensure accuracy. The BluVac+ LTE and BluVac+ Pro are the only field-calibratable vacuum gauges that require no special equipment for calibration.
- Bluetooth Smart Wireless Capability
- 0 to 25,000 Micron Range with 1 Micron Resolution
- Measures Vacuum in Microns, Pascals, Millibar, Millitorr, and mmHg
- Large, high-visibility back-lit LCD display
- Long Battery Life — Up to 300 Hours on One 9V Alkaline Battery
- “Analog” Vacuum Level Bar Graph
- Automatic Oil Sensor
- Built-in memory retains all previous settings
- Rugged, Compact Design — About the Size of a Manifold Gauge
- Calibration Self Test — Can be field calibrated with no special equipment
- Sensor withstands overpressure up to 500 PSI
- Ideal for HVAC/R Service and Industrial Use
BluVac+ LTE App Features
- View vacuum on digital gauge or graph
- Bar graph vacuum indicator
- Leak check feature
- Record evacuation process
- Export as graphical PDF
- Export as comma-delimited CSV
