Description

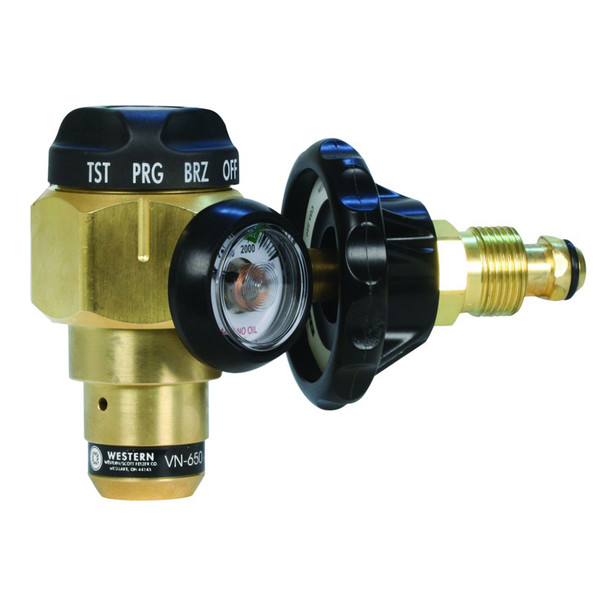

Western Enterprises VN-650 HVAC Nitrogen Purging Regulator
Purge, Braze, and Pressure Test with one Regulator
The Western Enterprises VN-650 Nitrogen Purging Test Regulator combines nitrogen purging, brazing, and pressure testing into a single easy-to-use tool for HVAC/R installations. Designed specifically for working with nitrogen during line set installation and system service, the VN-650 features preset flow and pressure settings that eliminate guesswork and help technicians perform critical tasks quickly and consistently.
With a maximum test pressure of 650 PSI, the VN-650 allows technicians to purge lines while brazing, pressure test systems, and maintain proper nitrogen flow using one compact regulator. The integrated regulator and flowmeter design simplifies setup, while the easy-to-read cylinder content gauge and hand-tight CGA-580 connection make operation straightforward in the field.
Key Features & Benefits
- Integrated nitrogen regulator and flowmeter
- Preset purge, braze, and test settings
- 650 PSI pressure test capability
- Preset purge flow of 25 to 35 SCFH
- Preset braze flow of 3 to 6 SCFH
- Easy-to-read cylinder content gauge
- Hand-tight CGA-580 cylinder connection
- 1/4" SAE flare outlet connection
- Durable brass construction
Specs
| Western VN-650 Specs | |
|---|---|
| Preset Test Pressure | 650 psi |
| Preset Purge Flow | 25 to 35 ft³/h |
| Preset Braze Flow | 3 to 6 ft³/h |
Includes
- (1) Western Enterprises VN-650 HVAC Nitrogen Purging Regulator
