Description

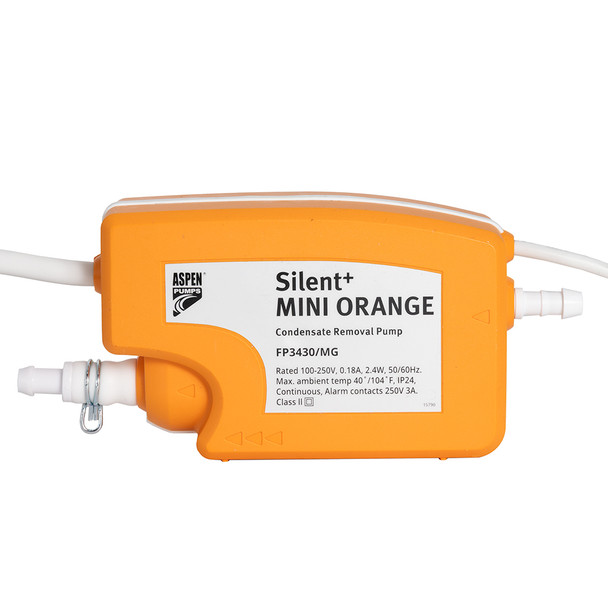

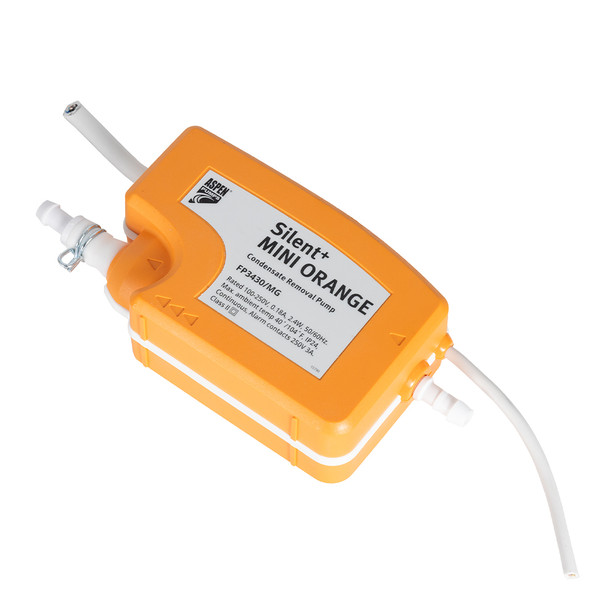

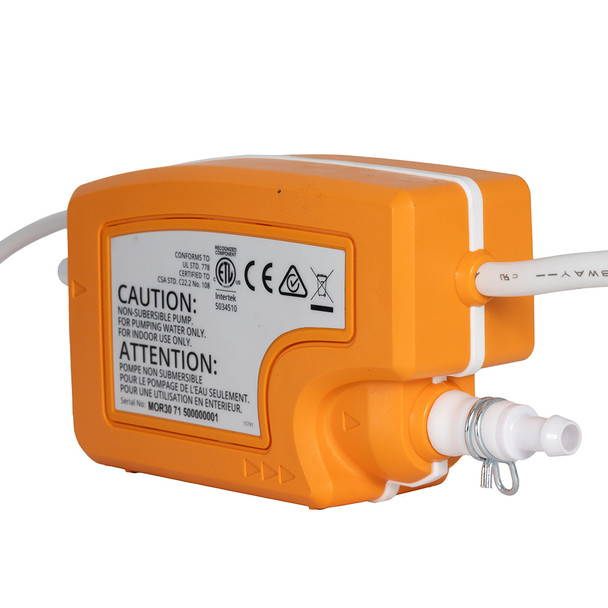

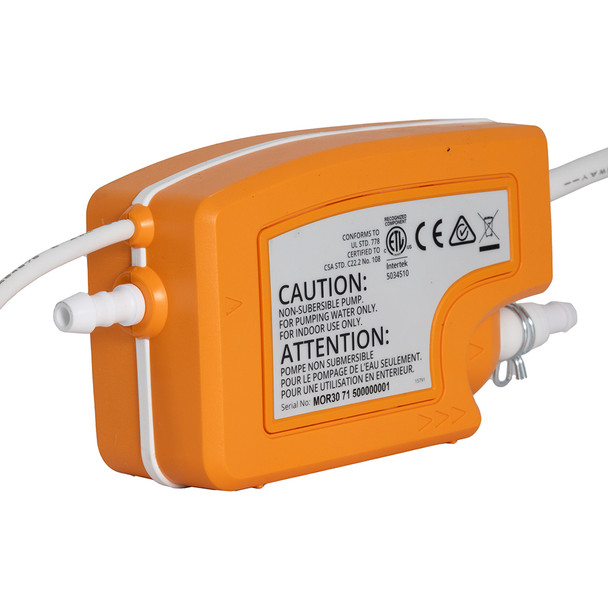

Aspen FP3430/MG Silent+ Mini Orange Condensate Removal Pump, Gen 5
Compact, ultra-quiet condensate pump for mini-split installations
The world's No.1 Orange mini pump is now better than ever. Using our proven 5th Gen Technology, the Silent+ MiniOrange boasts sound levels as low as 16dB(A). So quiet it eliminates the need for additional noise or vibration dampers. Perfect for ducted units; floor standing & chassis units; high wall split systems. Ideally installed within a ceiling void or similar area. Engineered for Silence.
Aspen mini condensate pumps are engineered for reliable, low-noise operation in noise-sensitive environments such as offices, hotels, and residential spaces. Designed around a total system approach, each pump includes everything needed for installation. Advanced capacitance sensor technology resists dirt, dust, and biofilm, minimizing maintenance beyond routine system service. Backed by industry-leading warranties up to 3 years, Aspen mini pumps deliver long-term performance installers can trust.
Key Features & Benefits
- Ultra-quiet condensate removal with adaptive variable speed (as low as 16 dB(A))
- Strong performance with up to ~9.25 US Gal/hr (35 L/h) and up to 33 ft / 10 m head
- Flexible design for ceiling voids, ducted units, or high wall splits
- Plug-and-play configuration with comprehensive installation kit
- Self-priming pump with IP24 protection and safety switch
- Universal 100-250 VAC compatibility
- Includes reservoir, power cable, discharge tube, inlet hose, drain connector kit, and quick start guide
Specs
| FP3578/MG Mini White 4.5 Specs | |
|---|---|
| Max Flow Rate | 9.25 Gallons/hr @0 m head |
| Max Unit Output | 136,000 BTU/h / 11.37 tons / 40 kW |
| Max Recommended Head | 33 ft |
| Max Suction Lift | 6'/1.5 m |
| Inlet O.D. | 5/8" (Ø16 mm) |
| Outlet O.D. | 1/4" (Ø6 mm) |
| Sound Level @ 3 ft | As low as 16dB |
| Max Water Temperature | 104 °F |
| Self-Priming | Yes |
| Color | Orange |
| Warranty | 3 year |

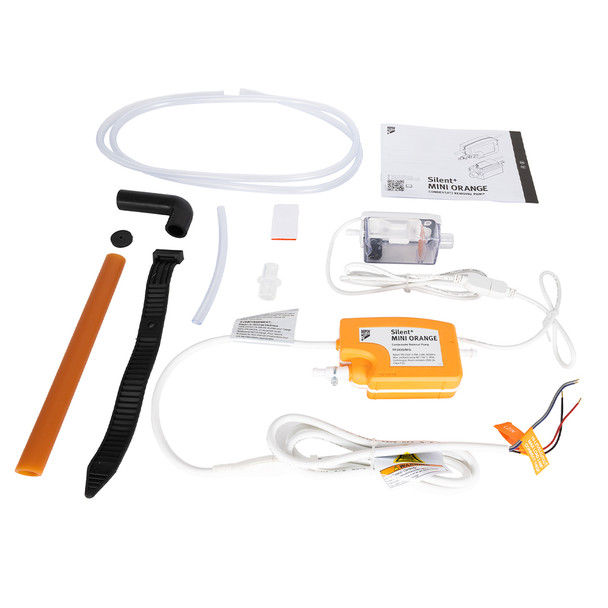

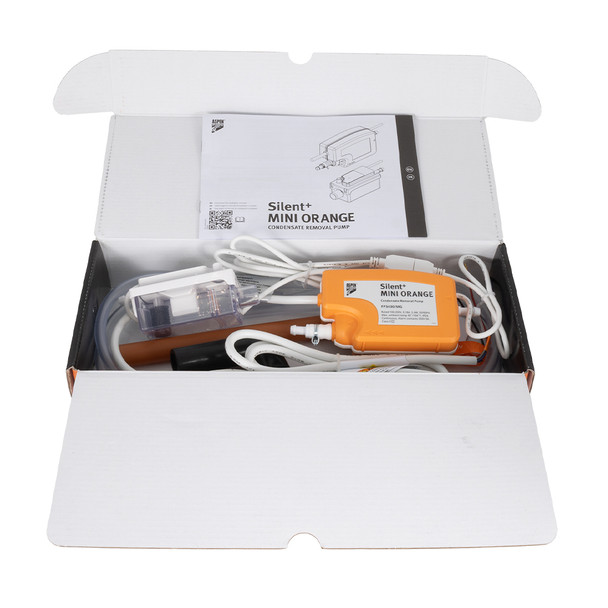

Includes
- (1) Silent+ Mini Orange 5.0 Gen Pump

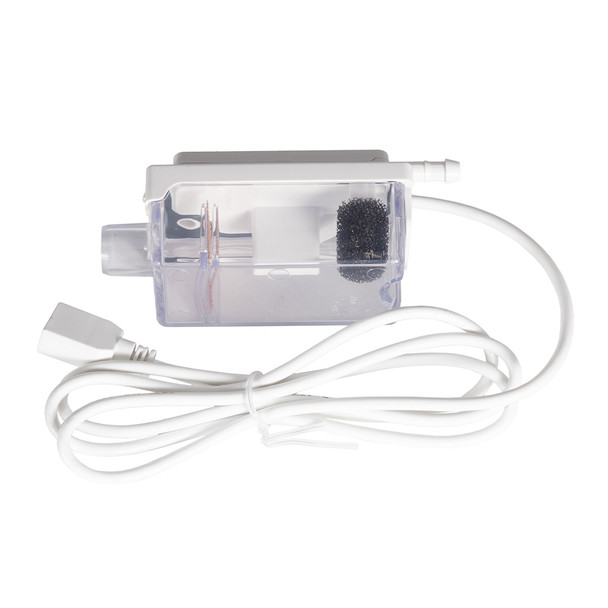

- (1) Reservoir (incl. filter and lid)
- (1) 5' (1.5m) Clear PVC Tube
- (1) 8.5" (220mm) Orange Inlet Hose
- (1) 6" (152mm) Clear Vent Hose
- (1) Plug and Play 5ft (1.5m) Power Cable
- (1) Drain connector kit with straight connector and rubber elbow
- (1) Fixing pad
- (1) Universal pump mount
- (1) Quick Start Guide
Aspen Silent+ Mini Orange Manual
