Description

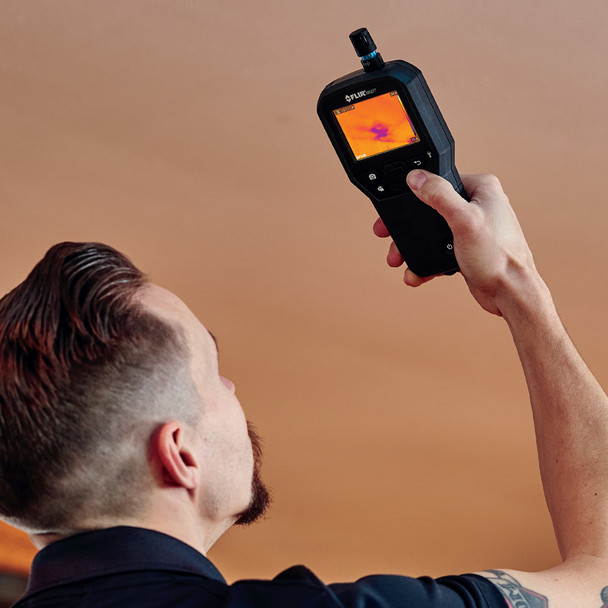

FLIR MR277 Professional Moisture Meter with MSX® Thermal IR Camera and Hygrometer
Clearly and accurately identify building-related issues
The MR277 is the first FLIR building inspection system to combine the advantages of Infrared Guided Measurement (IGM) and our patented Multi-Spectral Dynamic Imaging (MSX) with advanced environmental sensors to help you quickly locate, clearly identify, and easily document problems. IGM technology and a laser pointer isolate the area where you can use the integrated pinless moisture sensor for non-invasive readings or external pin probe for invasive measurements. With automatically calculated environmental readings and a field-replaceable humidity/temperature sensor, the MR277 lets you finish the job and minimize downtime. Connect to the FLIR METERLiNK® App to monitor readings and share critical data with your team members.
Key Features & Benefits
-
Locate Building Problems Faster
- Clearly see areas of concern with a high-performance 160 x 120 thermal imaging sensor
- Quickly find suspected problems with IGM technology
- Easily identify both the context and the issue with MSX, which embosses visual details on full thermal images
- Target the exact source of problems with the integrated laser pointer
-
Diagnose Efficiently and Accurately
- Quickly scan for moisture with the integrated non-invasive pinless sensor
- Capture exact measurements with an external pin probe (included) and wide range of optional moisture probes
- Reduce downtime with field-replaceable temperature/humidity sensor
- Calculated parameters based on multi-sensor input: grains per pound or grams per kilogram, vapor pressure, and dew point
-
Do More in Less Time
- Create a single file documenting comprehensive thermal and visual imagery with hygrometer readings and laser location
- Download images and data wirelessly or using the included USB cable
- Analyze images and quickly generate reports with free FLIR Tools software
- Easy to use with intuitive interface
Download the FLIR METERLiNK App for your Android or iOS devices today!
Connect up to seven compatible meters at once with the FLIR METERLiNK® app
With the FLIR METERLiNK Bluetooth® app you can monitor a variety of electrical and environmental conditions simultaneously. METERLiNK allows you to safely capture images and monitor hazardous areas remotely and in real time. Whether you're connecting several FLIR clamp meters, digital multimeters, or any of the new METERLiNK app compatible meters, you will be able to keep tabs on key readings around your facility and easily share them with your team.
App Features:
- View trends in real time - The new METERLiNK app dashboard is configured for easy condition monitoring, showing both a graphical and numerical representation of measurement data in real time with min, max, and average reading displays. An instantaneous data window opens when you tap any point on a measurement graph. You can also define alarm thresholds (high and low alarms). This provides additional assurance of operating ranges while performing testing procedures. Triggered alarms show on-screen messages with relevant readings and timestamps.
- Compare data from multiple meters - The METERLiNK app also provides the ability to compare log files, allowing you to review and compare any combination of meters and data points. This functionality will enable you to effectively troubleshoot and compare logs.
- Create professional reports - When it comes to sharing insights, a key feature of the METERLiNK app is the ability to create detailed, custom, PDF reports. With the ability to add custom logos, additional notes and specific measurements, the METERLiNK app allows you to easily compile and share insights quickly and professionally. With the METERLiNK app, you can also add data log files, images, and short video clips in your reports.
- Easy-to-use and personalized features - The METERLiNK app includes dark/light display mode options, links that connect to the FLIR support site for fast troubleshooting, and automatic app updates. You can also enable text notifications for low battery, a disconnected meter, or alarm events for each connected meter.
Specs
| Thermal Imaging Specs | |
|---|---|
| Resolution | 160 x 120 (19,200 pixels) |
| Spectral Response | 8 µm to 14 µm |
| Field of View (W x H) | 55° x 43° |
| Sensitivity | <70 mK |
| Object Temperature Range | 32°F to 212°F (0°C to 100°C) |
| Image Update Frequency | 9 Hz |
| Image Modes and Display | |
| Thermal Image Palettes | Iron, Rainbow, Arctic, White-hot, Black-hot |
| MSX® | Adds visual details to full resolution thermal image |
| Image Modes | Thermal, Visual, MSX® |
| Internal Memory | 8 GB |
| Image Gallery | Yes |
| Display Type | QVGA (320 x 240 pixels) 2.8 in color TFT graphical display |
| Moisture Measurement Specs | |
| Pin Moisture Range | 7% to 100% |
| Pin Moisture Accuracy | ±1.5%, 7 to 30% / Reference only: 30 to 100% |
| Pin Moisture Groups | 11 material groups |
| Pinless Moisture Range | 0 to 100% relative |
| Pinless Measurement Depth | Max 0.75 in (19 mm) |
| Measurement Resolution | 0.1 |
| Response Time Pinless Mode | 100 ms |
| Response Time Pin Mode | 750 ms |
| Environmental Measurement Specs | |
| Relative Humidity Range | 0% to 100% RH |
| Relative Humidity Accuracy |
Basic: ±2.5% Detailed: ±4.7% (0-10% RH), ±2.5% (10-90% RH), ±4.7% (90-100% RH) |
| Air Temperature Range | 32°F to 122°F (0°C to 50°C) |
| Air Temperature Accuracy | ±1.1°F (±0.6°C) |
| Dew Point | -22°F to 122°F (-30°C to 50°C) |
| Dew Point Accuracy | ±1.8°F (±1.0°C) |
| Vapor Pressure | 0 to 12.0 kPa |
| Vapor Pressure Accuracy | ±0.05 kPa |
| Mixing Ratio Range | 0 to 560 GPP (0 to 80.0 g/kg) |
| Mixing Ratio Accuracy | 0.25 g/kg (±2 GPP) |
| General Specs | |
| Saved Image File Format | Radiometric JPEG |
| Stored Image Capacity | 15,000 Images |
| Digital Camera | 2 MP |
| Digital Camera Field of View | 83° (70.5° HFOV x 56° VFOV) |
| Language Options | 22 |
| Laser Type | Visible Class 2, single laser pointer to center of thermal image |
| Power System | |
| Continuous Run Time | 16 hours max |
| Typical Usage | 4 work weeks |
| Auto Power Off | Programmable: off, 1, 5, or 20 minutes |
| Battery | Rechargeable 4.2 V, 5400 mAh LiPo |
| Certifications | |
| Standards | EN 61326 (EMC), EN 60825-1 Class 2 (laser), IEC61010-1 |
| Agency Approvals | CE, FCC Class B, RCM |
| Environment & Storage | |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature | -4°F to 113°F (-20°C to 45°C) |
| Operating Humidity | 5% to 95% |
| Storage Humidity | 90% RH (no condensation) |
| Drop Test | 6.6 ft (2 m) |
| Weight | 14.3 oz (406 g) |
| Size (L x W x H) | 6.2 x 3.3 x 1.7 in (16 x 8.5 x 4.4 cm) |
Includes
- (1) FLIR MR277 Professional Moisture Meter
- (1) FLIR MR13 Replaceable Temp and Humidity Sensor
- (1) FLIR MR02 Standard Moisture Pin Probe
- (1) USB Charging Cable
- (1) Quick Guide
FLIR MR277 Moisture Meter Manual
