measureQuick NAVAC 9 Probe Basic Kit for A/C or Heat Pump Cooling
Take a snapshot of the entire HVAC system's performance
Please use the options found above to select a dual manometer to take static pressure measurements
The Importance of Whole-System Measurements
measureQuick emphasizes measuring at the supply and return grills, not just at the equipment, for a crucial reason: it provides insight into the entire HVAC system's performance. This approach can uncover issues such as:
- Duct leakage
- Heat gain/loss in ductwork
- Inadequate airflow
- Improper system balance
These problems often go undetected when only measuring at the equipment level, potentially leading to inefficient operation and customer discomfort. while measureQuick is flexible enough to work with various probe configurations, utilizing all 9 probes delivers the most comprehensive and efficient diagnostic process. It's about equipping your team with the tools to perform at their best, ensuring top-quality service for every customer, every time.
Required Probes for A/C or Heat Pump Cooling
The 9 probe basic kit includes the minimum requirements for mQ Guided Workflows and Vitals Score.
- Low Pressure Probe
- High Pressure Probe
- Suction Line Temperature Probe
- Liquid Line Temperature Probe
- Outdoor Air Temperature Probe
- Return Air Psychrometer
- Supply Air Psychrometer
- Return Air Static Pressure (RESP) Manometer
- Supply Air Static Pressure (SESP) Manometer
Do I need all 9 probes to use measureQuick?
While not required to use the app, the mQ "9 probes" approach offers several key advantages:
- Comprehensive System View: Capture a complete snapshot of system performance at a single point in time
- Enhanced Accuracy: More data points lead to more reliable diagnostics and fewer errors
- Time Efficiency: Eliminate the need to switch probes mid-diagnosis, speeding up your workflow
- Standardized Process: Ensure consistent results across your entire team, regardless of experience level
- Advanced Troubleshooting: Access a full dataset to tackle complex issues more effectively
- Improved Customer Relations: Provide clear, data-driven explanations to boost customer trust and satisfaction
Check out the measureQuick knowledgebase article What Probes do I Need for measureQuick? for an in depth look at this topic.
NAVAC Smart Refrigerant Probe Kit with Temperature, Pressure, and Psychrometer Probes
Smart charging and comfort diagnostics
The NAVAC Smart Refrigerant Probes are an all-in-one solution for HVACR professionals. This kit includes two NST Bluetooth Temperature Clamps with high-accuracy thermistor sensors, two NSP Bluetooth Pressure Probes with automatic VSAT/LSAT calculations, and an extra Psychrometer for a total of 3 NSH Bluetooth Psychrometers for detailed air-side data, plus two F1030 1/4" SAE Access Tee Connectors. Each probe features a built-in digital display for standalone use, rechargeable lithium batteries, and user-friendly controls for smooth operation. This comprehensive kit ensures precision, efficiency, and convenience for system diagnostics and achieving optimal performance.
Key Features & Benefits
- Smart probes with built in digital displays
- Probes are suitable for standalone use
- Wireless connection with the MyNAVAC App and works with measureQuick
- High accuracy sensors
- A2L compatible
NSP1 Bluetooth Pressure Probes
- Auto VSAT/LSAT calculations through app
- Rechargable battery
- Easy switch knob for either High (HP) or Low (LP) Side
NST1 & NST2 Bluetooth Temperature Clamps
- 1-5/8" jaw opening
- High accuracy thermistor sensor
- Connects with the NEXUS manifold

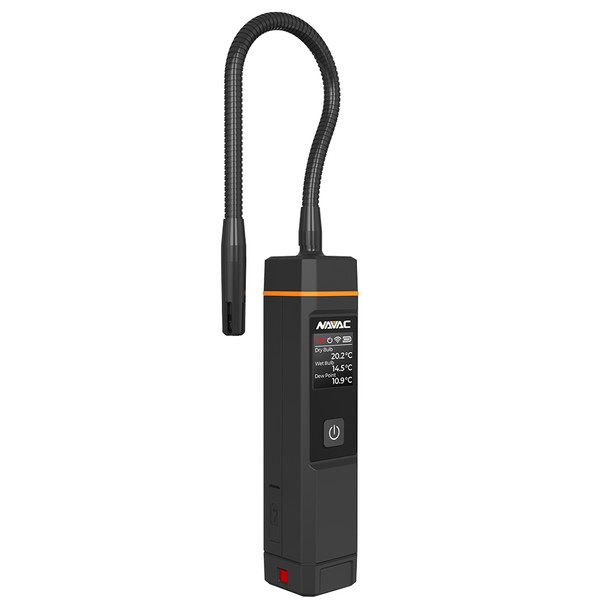

NSH1 Bluetooth Psychrometer Probes
- Detailed psychometric datapoints
- Rechargable battery
- Easy switch knob for either High (HP) or Low (LP) Side
The One App To Rule Them All.
Discover the unique advantage of measureQuick - the only HVAC app that seamlessly connects with the industry's top Bluetooth-enabled tools. This platform integrates with leading devices from top manufacturers providing a single interface to gather crucial data and streamline your diagnostic process. With measureQuick, you can harness the power of cutting-edge technology to enhance your team's capabilities and deliver exceptional service to your customers. Experience the unparalleled convenience and efficiency of connecting your favorite tools all in one place, exclusively with measureQuick.
Download the measureQuick App for your Android or iOS devices
The Quickest Way to Consistent Results
App features:
- Guided Workflows - Blazing fast project templates, tuned to eliminate errors and decrease time on the job site.
- mQ Cloud - Pre-populate jobs before getting to site, and live-stream measurements from any tech, anywhere.
- ACCA QI Certificates - Prove to your clients that you're the best in town through a certified report and 3rd party validation
- Streamlined Connectivity - Rock-solid bluetooth management of every probe and tool, regardless of where you are on the job site.
Specs
| NST1 & NST2 Temp Clamp Specs | |
|---|---|
| Temp Range | -40~257°F (-40~125°C) |
| Accuracy | ± 2.3°F (± 1.3°C) |
| Resolution | 0.1 |
| Sensor Type | Thermistor Pt100 |
| Temperature Units | °F, °C |
| Max. Tube OD | 1-5/8" (42mm) |
| Battery Type | 2 x AAA |
| Max. Bluetooth Range | Up to 450' (150m) |
| Display Type | TFT |
| Unit Weight | 0.35 lbs |
| IP Rating | IP54 |
| NSP1 Pressure Probe Specs | |
| Measurement Range | -29.0 inHg to 725 psi |
| Maximum Overload Pressure | 1087 psi (7500 kPa) |
| Accuracy | ±0.5% of full range |
| Resolution | 0.01 psi |
| Sensor Type | Ceramic pressure sensor |
| Bluetooth Range | 50m (164 ft) |
| Power Supply | Rechargeable 1200mAh lithium battery / Type-C Charging Port |
| Rechargeable Battery Operating Time | Screen off: >200h; Screen on: >40h |
| Unit Weight | 7.6oz (0.47lbs / 215g) |
| Accessory | Carry bag |
| Wireless Frequency | 2.4 GHz |
| Auto Power Off (APO) | 2 hours (can be disabled) |
| Minimum Device Requirement | BLE4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above |
| Warranty | 1 Year |
| NSH1 Psychrometer Probe Specs | |
| Measurement Range | Temperature: -40°F to 249.8°F Humidity: 0 to 100% RH |
| Measurement Units | °F (Fahrenheit) °C (Celsius) % RH (Relative Humidity) °Ftd (Fahrenheit, dry bulb temperature) °Ctd (Celsius, dry bulb temperature) Wet Bulb °F Wet Bulb °C |
| Accuracy | Humidity: ±2.0%RH (10 to 90%RH) (at 77°F/25°C) ±5.0%RH (< 10%RH or > 90%RH) (at 77°F/25°C) Temperature: ±1.1°F (-4°F to 32°F) / ±0.6°C (-20~0°C) ±0.9°F (32°F to 140°F) / ±0.5°C (0~60°C) ±1.3°F (140°F to 248°F) / ±0.7°C (60°C~120°C) |
| Resolution | Humidity: 0.1%RH Temperature: 0.1°C |
| Sensor Type | Humidity: Capacitive Polymer Film Temperature: Precision Thermistor |
| Response Time | 10 seconds |
| Bluetooth Range | 164ft (50m) |
| Power Supply | Rechargeable 1200mAh lithium battery / Type-C Charging Port |
| Rechargeable Battery Operating Time | Screen off: >200h; Screen on: >40h |
| Unit Weight | 7.8oz (0.49lbs / 220g) |
| Accessory | Carry bag |
| Wireless Frequency | 2.4 GHz |
| Auto Power Off (APO) | 2 hours (can be disabled) |
| Flexible Probe | Length: 7.9 in (200 mm) Diameter: 0.39 in (10mm) |
| Minimum Device Requirement | BLE4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above |
| Warranty | 1 Year |
Includes
- (2) NAVAC NSP1 Wireless Pressure Probes
- (3) NAVAC NSH1 Wireless Psychrometer Probes
- (1) NAVAC NST1 Wireless Temperature Clamp Low Side
- (1) NAVAC NST2 Wireless Temperature Clamp High Side
- (2) 1/4" SAE Tees
Resources
NAVAC SK3TPH1 Smart Probe Kit Datasheet
