Description

Get a FREE Veto Pro Pac MB3 with purchase

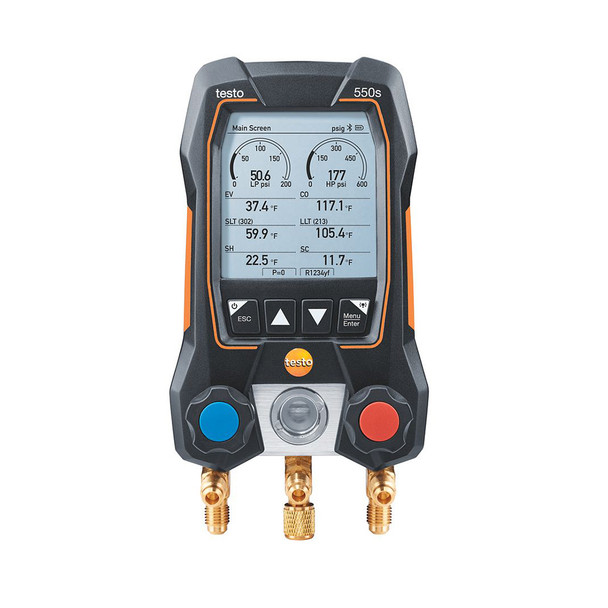

Testo 550s Basic Kit - Smart Digital Manifold with Wired Temperature Probes

All results at a glance thanks to the large graphic display!

The testo 550s digital manifold with 2-way valve block enables you to carry out your measurements on refrigeration, air conditioning systems, and heat pumps fast. The large display helps evaluate the results in graphic forms. Stored programs guide you through measurements and enable the automatic determination of numerous important system parameters such as superheating/subcooling, target superheat, cooling/heating capacity and many other areas.

Bluetooth probes for temperature, vacuum, and humidity can be easily connected and offer maximum flexibility in their application. In conjunction with the testo Smart App, you can take care of digital documentation directly on site. Its proven quality and great durability guarantee the continuously high performance of your manifold in all conditions.

Note: Connects to 2nd generation smart probes only.

Features:

  • Large graphic display for easy evaluation of the measurement results
  • Stored programs guide you through the measurement and enable the automatic determination of important system parameters, such as overheating, pressure drop testing or evacuation
  • Uncomplicated handling and maximum flexibility in use: Optional bluetooth probes for temperature, pressure and humidity automatically connect to the manifold
  • Testo Smart App: full operation of service and maintenance tasks via app and smartphone or tablet, clearly visualized results, digital documentation, set your own favorites, always have the latest refrigerants available
  • Continuously high performance under all conditions: You can rely on the testo 550s manifold - it combines proven Testo quality with a high level of ruggedness
  • Rugged wired clamp probe set with integrated cable kink protection for quick and easy measurement of surface temperatures on pipes with a diameter of 6 to 35 mm

With the testo 550s Basic Kit you are ready to start immediately. The kit includes the smart testo 550s digital manifold including bluetooth and 2-way valve block, two wired clamp temperature probes (NTC) and a rugged transport case. Optional bluetooth probes e.g. for wireless measurement of temperature and vacuum are available separately.

Whatever the digital manifolds are needed for – the new Testo 550 line has the right one. Compare and decide better.

Images link to best kit for the job

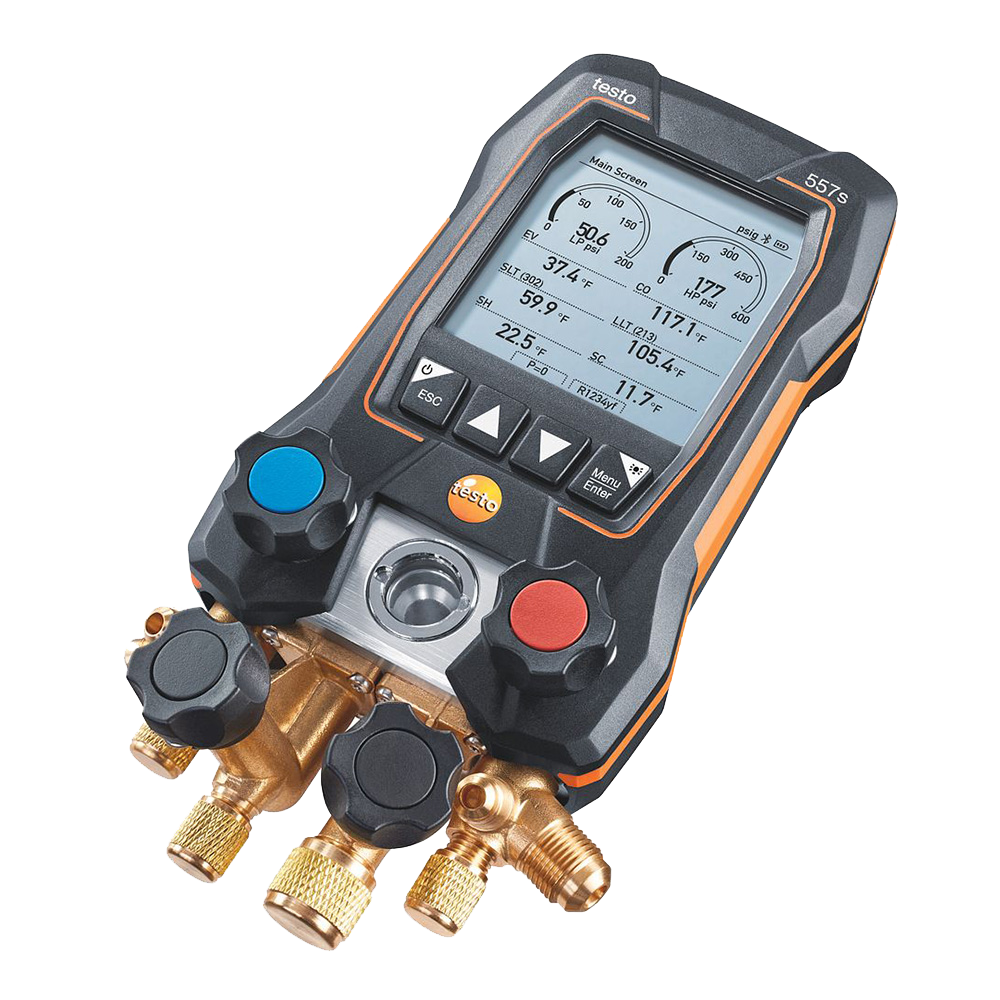

Testo logo Testo 550s Testo 557s Testo 550i
Testo 550s Testo 557s Testo 550i
Valve Block 2-Way 4-Way 2-Way
Large Graphic Display (App Only - Smart Device Required)
Testo Smart App Compatible Bluetooth 5.0 (range up to 500 feet) Bluetooth 5.0 (range up to 500 feet) Bluetooth 5.0 (range up to 500 feet)
Smart Probe Compatible ✓ (with automatic connection) ✓ (with automatic connection) ✓ (with automatic connection)
Compact one-hand opperation ✓ (ultra-compact)
Protection Class IP54 IP54 IP54
Identical Pressure Measuring Range HP/LP up to 870 psi up to 870 psi up to 870 psi
Pressure Accuracy Measurement > 0.5 % of fs > 0.5 % of fs > 0.5 % of fs
Integrated Temperature Measurement ✓ (up to 2 temperature probes + Bluetooth probe) ✓ (up to 2 temperature probes + Bluetooth probe) ✓ (up to 2 temperature probes + Bluetooth probe)
Target Superheat on Manifold or App ✓ (Both) ✓ (Both) ✓ (App Only)
Data documented and sent via App
Refrigerants Stored 90 90 90
Refrigerant Update automatically via App
Suitable for A2L Refrigerants
Testo PC Software (Optional)

Specs

Testo 550s Manifold
Pressure Range -14 to 870 psi
Pressure Accuracy (at 72 °F) ±0.5% fs
Pressure Resolution 0.1 psi
Pressure Overload 940 psi
Pressure Connection 3 x 7/16" - UNF
Temperature Range -58 to 302 °F
Temperature Accuracy (at 72 °F) ±0.9 °F
Temperature Resolution 0.1 °F
Temperature Connection 2 x plug-in (NTC)
Operating temperature 14 to 122 °F
Storage temperature -4 to 140 °F
Battery type 4 AA batteries
Battery Life 250 hrs with no illumination, no Bluetooth
100 hrs with illumination and Bluetooth
Auto power off After 10 minutes when not connected via Bluetooth
Dimensions 8.3 x 4.8 x 2.4 in
Weight 1.8 lbs.
Protection class IP54
Bluetooth Bluetooth 5.0 (500ft)
Compatibility Requires iOS 11.0 or newer
Android 6.0 or newer
Requires mobile device with Bluetooth 4.0

Includes

  • (1) Testo 550s - Digital Refrigerant Manifold
  • (2) Testo Wired Temperature Clamp Probes
  • (1) Case
  • (1) Calibration Certificate
  • (1) Manual
  • (1) Batteries

Videos

Software / App

Download the Testo Smart App for your Android or iOS devices today!

Google Play Store Apple App Store


Welcome to the new, digital age of measurement technology. With the testo Smart App, you turn your smartphone into a mobile, multi-functional command center for all applications involving refrigeration, air conditioning and heating systems. Together with the Bluetooth-enabled measuring instruments and Smart Probes from Testo, this equips you optimally for the future. And everything which comes after it.

All applications of the new digital manifolds on your smartphone: With the new testo Smart App, you can evaluate results even faster Additionally, it helps you to avoid measurement errors, as stored measurement programs guide you step by step through the configuration and measurements. With the integrated documentation functions, reports can be created on site, and digital measurement protocols, including photos, can be sent as PDF or CSV files directly by e-mail. You can also set up customer data and measurement sites at the touch of a button, and synchronization with the free testo DataControl PC software is done wirelessly via Wi-Fi.

Works with:

  • All Testo 550s, Testo 557s and Testo 550i digital manifolds
  • All Testo smart probes
  • Testo 552i vacuum gauge
  • Testo 770-3 clamp meter

App Features:

  • All in one - All Smart Probes and Bluetooth-capable Testo measuring instruments for refrigeration, air conditioning and heating systems and heat pumps combined in one App
  • Quick and easy - Measurement menus for a wide range of applications facilitate quick and easy configuration and performance of the measurement
  • Graph of values - Measured values are displayed in graphic form to enable quick reading of the results
  • Document and share - Easy creation of digital measurement protocols and documentation including photos as well as sending via e-mail
