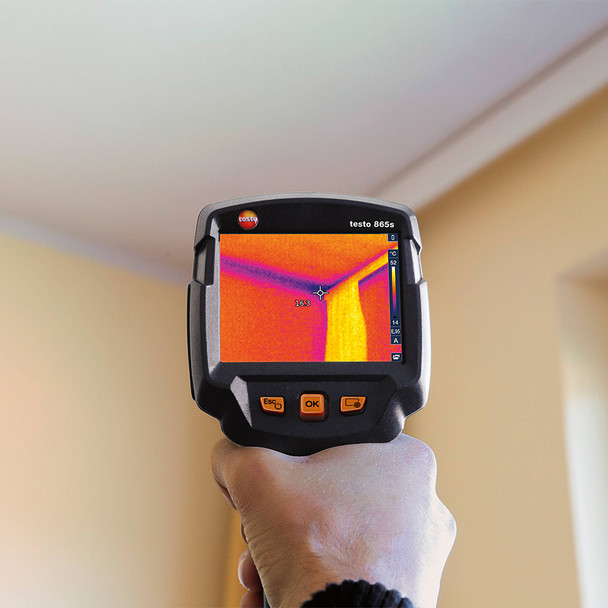

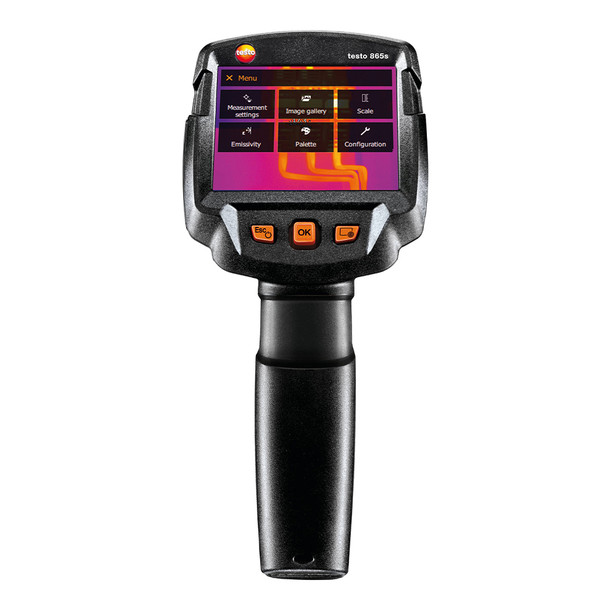

DISCONTINUED - Testo 865s Thermal Imaging Camera 160 x 120 with SuperResolution
Power on, aim, analyze.
The testo 865s thermal imager is the ideal entry into the world of thermography. It impresses with the best image quality in its class and intuitive operation in a modern tile look. The testo 865s fits comfortably in the hand and is robust enough to withstand the rigors of everyday use. Helpful functions such as IFOV-Warner and Scale Assist ensure even better thermal images. All that combined with an unbeatable priceperformance ratio. Switch on, point, know more.
Features and Benefits
- Infrared resolution 160 x 120 pixels with testo SuperResolution technology 320 x 240 pixels
- Thermal sensitivity (NETD) of < 0.18 °F (0.1 °C) (100 mK)
- Automatic detection of hot and cold spots
- testo ScaleAssist for comparable images in building thermography
- IFOV warner for displaying the measurement spot size
Specs
| Infrared image output | |
|---|---|
| Infrared resolution | 160 x 120 pixels |
| Thermal sensitivity (NETD) | <0.18 °F (0.1 °C) (100 mK) |
| Field of view/min. focusing distance | 31° x 23° / < 1.6 ft (0.5 m) |
| Geometric resolution (IFOV) | 3.4 mrad |
| testo SuperResolution (Pixel/IFOV) | 320 x 240 pixels 2.1 mrad |
| Image refresh rate | 9 Hz |
| Focus | Fixed focus |
| Spectral range | 7.5 to 14 µm | Image presentation |
| Image display | 3.5 in (8.9 cm) TFT, QVGA |
| Display options | IR image |
| Color palettes | iron, rainbow HC, cold-hot, grey | Data interfaces |
| USB 2.0 Micro B | Yes | Measurement |
| Measuring range | -4 to 536 °F (-20 to +280 °C) |
| Accuracy | ±3.6 °F (±2 °C), ±2 % of measurement value (larger value applies) |
| Emissivity / reflected temperature compensation | 0.01 to 1 / manual | Measurement functions |
| Analysis functions | Mean point measurement, hot/cold-spot recognition, Delta T |
| testo ScaleAssist | Yes |
| IFOV warner | Yes | Imager equipment |
| Lens | 31° x 23° |
| Video streaming | via USB |
| Storage as JPG | Yes |
| Fullscreen mode | Yes | Image storage |
| File format | .bmt and .jpg; export options in .bmp, .jpg, .png, .csv, .xls |
| Memory | Internal memory (2.8 GB) | Power supply |
| Battery type | Li-ion battery can be changed on-site |
| Operating time | 4 hours |
| Charging options | In instrument/in charging station (optional) |
| Power Supply Included | Yes | General Specs |
| Operating temperature range | 5 to 122 °F (-15 to +50 °C) |
| Storage temperature range | -22 to 140 °F (-30 to +60 °C) |
| Air humidity | 20 to 80 %RH, not condensing |
| Housing protection class (IEC 60529) | IP54 |
| Weight | 1.12 lbs (510 g) |
| Dimensions (LxWxH) | 8.6 x 3.8 x 3.7 in (219 x 96 x 95 mm) |
Includes
- (1) Testo 865s Thermal Imaging Camera 160 x 120 with SuperResolution
- (1) Hard Case
- (1) USB Cable
- (1) Power Supply
- (1) Li-Ion Rechargable Battery
- (1) Pro Software (free download)
- (1) Quick start guide
- (1) Calibration certificate
